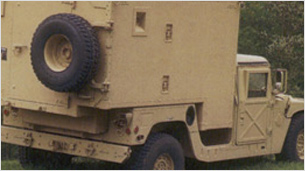

M1097A2
| Shelter Carrier |
| w/ Optional Spare Tire & Hard Doors |
| |
| Curb Weight: |
5900 lbs. (2676 kg.) |
| Payload: |
4400 lbs. (1996 kg.) |
| Gross Vehicle Weight: |
10300 lbs. (4672 kg.) |
| Gross Axle Weight (Front): |
4500 lbs. (2041 kg.) |
| Gross Axle Weight (Rear): |
6500 lbs. (2948 kg.) |
| Length: |
190.5 in. (4.84 m.) |
| Height: |
74 in. (1.88 m.) |
| Min. Reduced Height: |
56 in. (1.42 m.) |
| Reduced Shipping Cube: |
531 ft.^3 (15.0 m.^3) |
| Approach Angle: |
54° |
| Departure Angle: |
38° |
| Acceleration (0-30mph): |
9.4 sec. 9.4 sec. |
| Acceleration (0-50mph): |
26.1 sec. 26 sec. |
| Crusing Range: |
275 mi. (443 km.) |
| CGX: |
60.6 in. (1.56 m.) |
| CGY: |
1.2 in. (0.03 m.) |
| CGZ: |
28.2 in. (0.72 m.) |
| Spring Rate (Front): |
954 lb./in. (167 N/mm) |
| Spring Rate (Rear): |
Variable |
| Troop Seating Capacity: |
1+1 |
|
|
|
