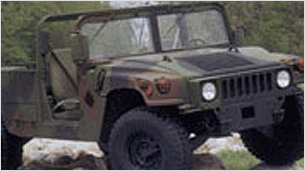

M1113
| Curb Weight: |
6400 lbs. (2903 kg.) |
| Payload: |
5100 lbs. (2313 kg.) |
| Gross Vehicle Weight: |
11500 lbs. (5216 kg.) |
| Gross Axle Weight (Front): |
5080 lbs. (2290 kg.) |
| Gross Axle Weight (Rear): |
7000 lbs. (3176 kg.) |
| Length: |
196.5 in. (5.00 m.) |
| Height: |
76 in. (1.93 m.) |
| Min. Reduced Height: |
56 in. (1.42 m.) |
| Reduced Shipping Cube: |
548 ft.^3 (15.5 m.^3) |
| Approach Angle: |
46° |
| Departure Angle: |
41° |
| Acceleration (0-30mph): |
9.4 sec. 9.4 sec. |
| Acceleration (0-50mph): |
26.1 sec. 26.1 sec. |
| Crusing Range: |
275 mi. (443 km.) |
| CGX: |
60.4 in. (1.53 m.) |
| CGY: |
.06 in. (.015 m.) |
| CGZ: |
29.7 in. (.76 m.) |
| Spring Rate (Front): |
1750 lb./in. (306 N/mm) |
| Spring Rate (Rear): |
3000 lb./in. (525 N/mm) |
| Troop Seating Capacity: |
1+1 |
|
|
|
