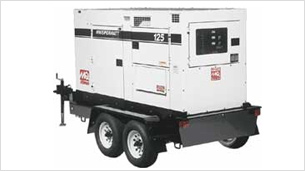

DCA-125USJ
Part Number: 207265
This generator delivers dependable, uninterrupted power that is as pleasing to the user as it is to the environment. The Ultra-Silent DCA-125USJ operates at a calming 62 dB(A) full load at 23 feet and has a standby output of 137 kVA/110 kW and prime output of 125 kVA/100 kW. This electric-starting unit operates with the muscle of a 150-horsepower John Deere diesel engine that features improved fuel efficiency and voltage regulation of 1 percent no load to full load.
| Performance Data |
| |
|
| Standby Output |
110 kW , 137 kVA |
| Prime Output |
100 kW , 125 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral / Zigzag |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480V Switchable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps - Single Phase 120V |
277.8 (4 Wire) 301x2 (Zigzg) Amps |
| Amps - Single Phase 240V |
138.9 (4 Wire) 301 (Zigzg) Amps |
| Amps - Three Phase 240V |
301 Amps |
| Amps - Three Phase 480V |
150 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
62 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
John Deere 6068TF275 |
| |
| Dimensions |
| |
|
| Overall Length |
120 in. , 305 cm |
| Overall Width |
49 in. , 124 cm |
| Overall Height |
73 in. , 186 cm |
| Approx. Net Wt. Dry |
6031 lbs. , 2735 kg. |
|
