DCA-150SSVU
Part Number: 207244

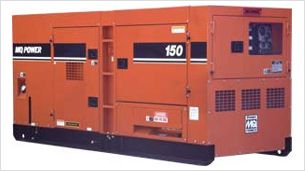

The Whisperwatt DCA-150SSVU boasts 165 kVA/132 kW standby output and 150 kVA/120 kW prime output. The generator is powered by a 191-horsepower, 6-cylinder John Deere diesel engine and the unit controls voltage regulation to +/-1.5 percent no load to full load. Sound level is an astounding 72 dB(A) full load at 23 feet — the quietest generator on the market.
| Performance Data |
| |
|
| Standby Output |
132 kW , 165 kVA |
| Prime Output |
120 kW , 150 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral / Zigzag |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480 Switchable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps - Single Phase 120V |
333.3 (4 Wire) 361 x 2 (Zigzag) Amps |
| Amps - Single Phase 240V |
166.7 (4 Wire) 361 (Zigzag) Amps |
| Amps - Three Phase 240V |
361 Amps |
| Amps - Three Phase 480V |
180 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
72 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Volvo TAD720GE |
| |
| Dimensions |
| |
|
| Overall Length |
131 in. , 332 cm |
| Overall Width |
48 in. , 120 cm |
| Overall Height |
59 in. , 150 cm |
| Approx. Net Wt. Dry |
5072 lbs. , 2300 kg. |
|
