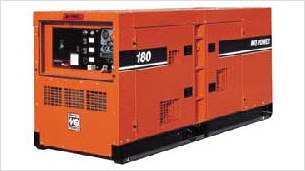

DCA-180SSV
Part Number: 209754
| Performance Data |
| |
|
| Standby Output |
158 kW , 198 kVA |
| Prime Output |
144 kW , 180 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 480 Reconnectable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Adjustable Volts |
| Amps - Single Phase 120V |
400 (4 Wire) Amps |
| Amps - Single Phase 240V |
200 (4 Wire) Amps |
| Amps - Three Phase 240V |
433 Amps |
| Amps - Three Phase 480V |
216 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
70 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Volvo TAD722GE |
| |
| Dimensions |
| |
|
| Overall Length |
139.7 in., 355 cm |
| Overall Width |
47.24 in., 120 cm |
| Overall Height |
70.98 in., 180 cm |
| Approx. Net Wt. Dry |
6515 lbs. , 2955 kg. |
|
