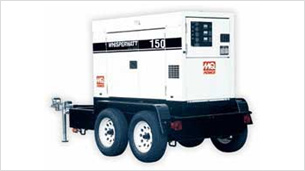

DCA-150USJ Part Number: 207266
The most powerful generator in the line, the Ultra-Silent DCA-150USJ has all the features users have come to expect from WhisperWatts and much more. It has a patented “Ultra-Silent” air flow design for quieter operation, an environmentally friendly full fluid and fuel containment system, and a fuel-efficient EPA-approved Tier II 200-horsepower John Deere diesel engine. The DCA-150USJ produces power to the tune of 165 kVA/132 kW (standby) and 150 kVA/120 kW (prime).
| Performance Data |
| |
|
| Standby Output |
132 kW , 165 kVA |
| Prime Output |
120 kW , 150 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral / Zigzag |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480 Switchable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps - Single Phase 120V |
333.3 (4 Wire) 361x2 (Zigzag) Amps |
| Amps - Single Phase 240V |
166.7 (4 Wire) 361 (Zigzag) Amps |
| Amps - Three Phase 240V |
361 Amps |
| Amps - Three Phase 480V |
180 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
63 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
John Deere 6068HF275 |
| |
| Dimensions |
| |
|
| Overall Length |
128 in. , 325 cm |
| Overall Width |
49 in. , 124 cm |
| Overall Height |
75 in. , 191 cm |
| Approx. Net Wt. Dry |
6690 lbs. , 3035 kg. |
|
