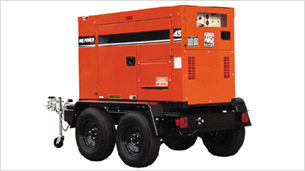

DCA-45SSIU
Part Number: 209104
The Whisperwatt DCA-45SSIU controls power within +/-1 percent of mean voltage. The unit generates 47 kVA/37 kW standby output and 45 kVA/36 kW prime output. Standard features include a complete power panel, automatic safety shutdown system, brushless generator design, easy maintenance design with direct access to all filters, and an internal fuel tank.
| Performance Data |
| |
|
| Standby Output |
37 kW , 47 kVA |
| Prime Output |
36 kW , 45 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1.5 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral / Zigzag |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480 Switchable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps - Single Phase 120V |
100 (4 Wire) 108x2 (Zigzag) Amps |
| Amps - Single Phase 240V |
50 (4 Wire) 108 (Zigzag) Amps |
| Amps - Three Phase 240V |
108 Amps |
| Amps - Three Phase 480V |
54 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
66 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Isuzu BB-4JGT1 |
| |
| Dimensions |
| |
|
| Overall Length |
79 in. , 200 cm |
| Overall Width |
35 in. , 90 cm |
| Overall Height |
49 in. , 125 cm |
| Approx. Net Wt. Dry |
2403 lbs. , 1090 kg. |
|
