DCA-10SPX
Part Number: 207232

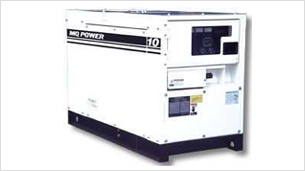

The most compact model in the series, the Whisperwatt DCA-10SPX generates 10.5 kW standby output and 10 kW prime output. It features silenced, weather-resistant steel housing, single point lifting bail, a fully lockable enclosure, reverse flow cooling, external service drains and much more. The DCA-10SPX weighs 1,080 pounds (490 kg).
| Performance Data |
| |
|
| Standby Output |
10.5 kW |
| Prime Output |
10 kW |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1.5 % |
| Power Factor |
1 |
| Armature Connection |
Series |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - Single Phase 120V |
120/240 Volts |
| Amps - Single Phase 120V |
41.7 (2 Sets) Amps |
| Amps - Single Phase 240V |
41.7 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
62 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Kubota D1403 |
| |
| Dimensions |
| |
|
| Overall Length |
55 in., 140 cm |
| Overall Width |
26 in., 65 cm |
| Overall Height |
35 in., 90 cm |
| Approx. Net Wt. Dry |
1080 lbs., 490 kg. |
|
