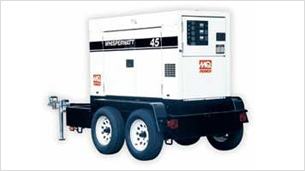

DCA-45USI
Part Number: 207262
The Ultra-Silent DCA-45USI generates standby output of 47 kVA/37 kW and prime output of 45 kVA/36 kW. Powered by a 55-horsepower, 4-cylinder Isuzu BB-4JG1T diesel engine, the DCA-45USI also features improved fuel efficiency and voltage regulation, and residual value that is unmatched by any other generator. An integrated fuel tank has a 24-hour run time. In addition, the generator is offered with a standard electric starting system and improved frequency regulation to 0.25 percent.
| Performance Data |
| |
|
| Standby Output |
37 kW , 47 kVA |
| Prime Output |
36 kW , 45 kVA |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1 % |
| Power Factor |
0.8 |
| Armature Connection |
Star with Neutral / Zigzag |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480V Switchable Volts |
| Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps - Single Phase 120V |
100 (4 Wire) 108x2 (Zigzg) Amps |
| Amps - Single Phase 240V |
50 (4 Wire) 108 (Zigzg) Amps |
| Amps - Three Phase 240V |
108 Amps |
| Amps - Three Phase 480V |
54 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
57 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Isuzu BB-4JG1T |
| |
| Dimensions |
| |
|
| Overall Length |
82 in. , 209 cm |
| Overall Width |
37 in. , 95 cm |
| Overall Height |
61 in. , 155 cm |
| Approx. Net Wt. Dry |
2940 lbs. , 1334 kg. |
|
