TLG-12SPX
Part Number: 207233

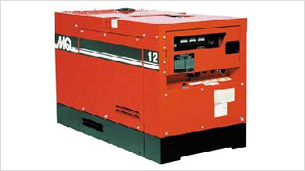

At 3,600 rpm, the Whisperwatt TLG-12SPX is MQ Power’s fastest running generator. The compact unit produces 13 kW standby output and 12 kW prime output. Like the others members in the WhisperWatt line, this super-silent generator is powered by a fuel-efficient diesel engine offering long service life and requiring little maintenance. At 948 pounds (430 kg) it is the lightest model available.
| Performance Data |
| |
|
| Standby Output |
13 kW |
| Prime Output |
12 kW |
| Generator RPM |
3600 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1.5 % |
| Power Factor |
1 |
| Armature Connection |
Series |
| Excitation |
Brushless with AVR |
| No. Poles |
2 Pole |
| Frequency |
60 Hz |
| Available Voltages - Single Phase 120V |
120/240 Volts |
| Amps - Single Phase 120V |
50 (2 Sets) Amps |
| Amps - Single Phase 240V |
50 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
67 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Isuzu 3LB1 |
| |
| Dimensions |
| |
|
| Overall Length |
55 in. , 140 cm |
| Overall Width |
27 in. , 69 cm |
| Overall Height |
33 in. , 85 cm |
| Approx. Net Wt. Dry |
948 lbs. , 430 kg. |
|
