DCA-15PX
Part Number: 207234

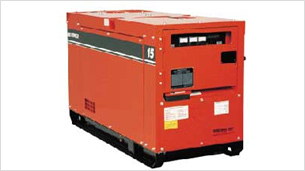

The Whisperwatt DCA-15PX controls power within 1 percent of mean voltage. The unit generates 16.5 kW standby output and 15 kW prime output. Standard features include a complete power panel, automatic safety shutdown system, brushless generator design, easy maintenance design with direct access to all filters, and an internal fuel tank.
| Performance Data |
| |
|
| Standby Output |
16.5 kW |
| Prime Output |
15 kW |
| Generator RPM |
1800 |
| Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single Bearing |
| Voltage Regulation - (No Load to Full Load) |
1.5 % |
| Power Factor |
1 |
| Armature Connection |
Series |
| Excitation |
Brushless with AVR |
| No. Poles |
4 Pole |
| Frequency |
60 Hz |
| Available Voltages - Single Phase 120V |
120/240 Volts |
| Amps - Single Phase 120V |
62.5 (2 Sets) Amps |
| Amps - Single Phase 240V |
62.5 Amps |
| Insulation |
Class F |
| Sound Level dB(A) - Full Load at 23 feet |
63 dB(A) |
| |
| Power Source |
| |
|
| Engine Make / Model |
Kubota V2203 |
| |
| Dimensions |
| |
|
| Overall Length |
65 in. , 155 cm |
| Overall Width |
61 in. , 65 cm |
| Overall Height |
36 in. , 90 cm |
| Approx. Net Wt. Dry |
1277 lbs. , 579 kg. |
|
